For those seeking a more profound understanding, this section delves into the scientific, technical, and advanced design aspects of lighting.

1. The Science of Light and Human Well-being (Human-Centric Lighting)

Lighting extends far beyond mere visibility; it profoundly impacts our biology, mood, and overall well-being. This advanced guide explores the cutting-edge field of Human-Centric Lighting, revealing how specific light qualities affect our circadian rhythms, productivity, and health. Discover how lighting design can be optimised to support human flourishing throughout the day and night.

Explanation:

Human-Centric Lighting (HCL) is an advanced and rapidly evolving discipline that focuses on designing lighting solutions to explicitly support human health, well-being, and performance. It takes into account both the well-understood visual effects of light (how we see) and, crucially, the more recently understood non-visual or biological effects of light on human physiology. HCL recognises that humans evolved under the dynamic, changing natural light of the sun, and therefore, artificial lighting environments should ideally mimic these natural cycles to support our biological processes.

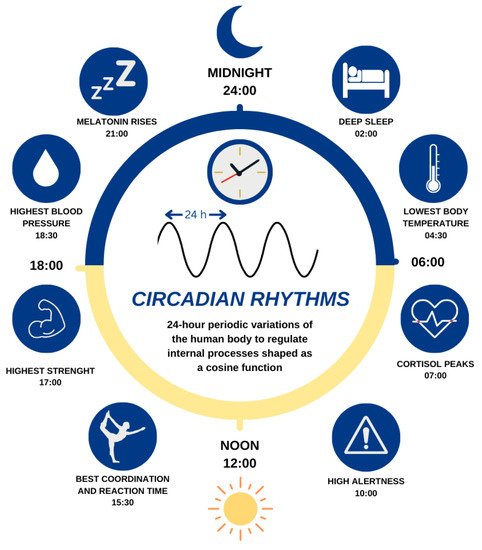

• Circadian Lighting:
  • Definition: Our bodies operate on a sophisticated internal biological clock, known as the circadian rhythm, which governs a wide array of physiological processes, including sleep-wake cycles, hormone production (like melatonin and cortisol), body temperature, and metabolism. This rhythm is primarily synchronised and regulated by exposure to light, particularly the blue spectrum of light.
  • Impact on Health and Well-being: Exposure to bright, blue-rich light in the morning and throughout the day helps to suppress melatonin (the “sleep hormone”), thereby promoting alertness, concentration, cognitive function, and ultimately contributing to better, more restorative sleep at night. Conversely, excessive exposure to blue-rich light in the evening (from electronic screens or cool-white artificial lights) can disrupt melatonin production, leading to sleep disturbances, daytime fatigue, and potentially contributing to long-term health issues.
  • Implementation: Circadian lighting systems, often utilising “tunable white” LED technology, are designed to automatically or manually adjust both the intensity (brightness) and colour temperature of the light throughout the day to mimic natural daylight cycles indoors:
    • Morning/Mid-day (Energising): Brighter, cooler white light (e.g., 5000K-6500K) is emitted to enhance alertness, focus, and overall cognitive performance, similar to natural daylight.
    • Afternoon (Transition): The light gradually transitions to a more neutral white, preparing the body for the evening.
    • Evening (Relaxing): The light dims and shifts to a very warm white (e.g., 2200K-2700K) to promote melatonin production, reduce visual stimulation, and prepare the body for restful sleep.
• Melanopic Lux (Equivalent Melanopic Lux – EML):
  • Definition: While traditional lux measures the amount of light perceived by the rods and cones for visual acuity, melanopic lux (or EML) is a specialised metric that quantifies the amount of light that specifically stimulates the intrinsically photosensitive retinal ganglion cells (ipRGCs). These unique photoreceptors, discovered more recently, are distinct from rods and cones and are the primary mediators of the non-visual, biological effects of light on our circadian rhythm. They are most sensitive to the blue-green wavelengths of light (peaking around 480nm).
  • Importance: Understanding melanopic lux allows lighting designers to create lighting schemes that not only provide excellent visual illumination but also effectively support and regulate our biological clock, even at light levels that might not appear overtly “bright” visually. For example, a light source that seems visually dim but is rich in the specific blue wavelengths can still have a strong melanopic (circadian) impact. This metric is crucial for designing healthy indoor environments.
• Biophilic Design Principles in Lighting:
  • Connecting with Nature: Biophilic design is an innovative approach that seeks to integrate natural elements, patterns, and processes into the built environment to foster a deeper, innate connection between humans and nature. In the context of lighting, this translates to:

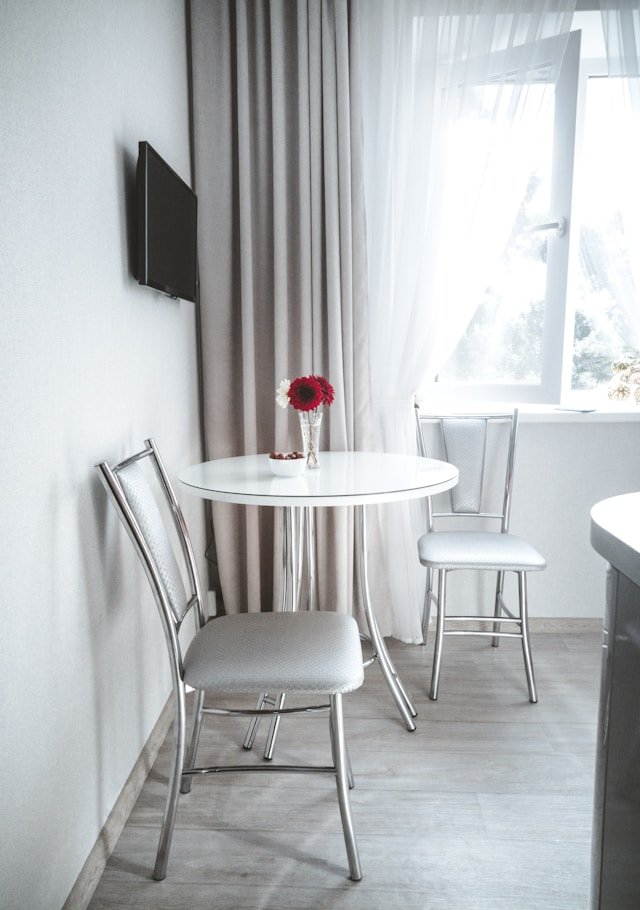

    • Maximising Natural Daylight and Views: Prioritising large windows, skylights, and thoughtful building orientation to allow ample natural light penetration and provide unobstructed views to the outdoors.
    • Mimicking Natural Light Dynamics: Creating artificial lighting systems that replicate the dynamic changes in intensity, colour temperature, and even direction observed in natural light throughout the day and seasons.
    • Simulating Natural Patterns: Using light to create patterns that resemble those found in nature, such as dappled light and shadow (like light filtering through leaves).
  • Benefits: Research consistently suggests that environments incorporating biophilic design principles, including thoughtfully implemented natural lighting strategies, can lead to numerous positive outcomes such as reduced stress levels, improved cognitive performance, enhanced mood, accelerated healing rates, and overall enhanced human well-being.
• Impact on Productivity, Learning, and Performance: Numerous scientific studies and real-world case studies have demonstrated a clear and significant link between optimally designed lighting environments and improved human performance across various settings:
  • Improved Concentration and Focus: Appropriate light levels and dynamically adjusted colour temperatures reduce eye strain and combat mental fatigue, helping individuals maintain higher levels of concentration and focus for extended periods.
  • Reduced Errors and Enhanced Accuracy: Better visibility, reduced glare, and consistent light distribution contribute directly to fewer mistakes and improved accuracy in task-oriented environments, such as offices, factories, or laboratories.
  • Enhanced Mood and Alertness: Particularly in educational institutions, healthcare facilities, and office environments, carefully implemented cool, brighter light during peak working hours can significantly boost alertness, energy levels, and overall mood, leading to increased productivity and better learning outcomes.
  • Reduced Absenteeism: Environments featuring well-designed Human-Centric Lighting have been linked to lower rates of absenteeism due to illness and improved overall employee or student satisfaction.

2. Advanced Lighting Calculations and Metrics

For precise lighting design, understanding the underlying calculations and metrics is crucial. This guide provides a deeper dive into quantitative aspects of light, from measuring light levels to assessing glare and uniformity. Gain insights into the technical language and tools used by lighting professionals to ensure optimal performance and comfort.

Explanation:

Moving beyond qualitative descriptions, advanced lighting design relies heavily on precise quantitative measurements and complex calculations. These metrics are essential to ensure that a space is not only visually appealing but also consistently meets stringent functional, safety, and comfort standards. Lighting professionals extensively use these technical metrics to accurately design, specify, and ultimately verify the performance of lighting installations.

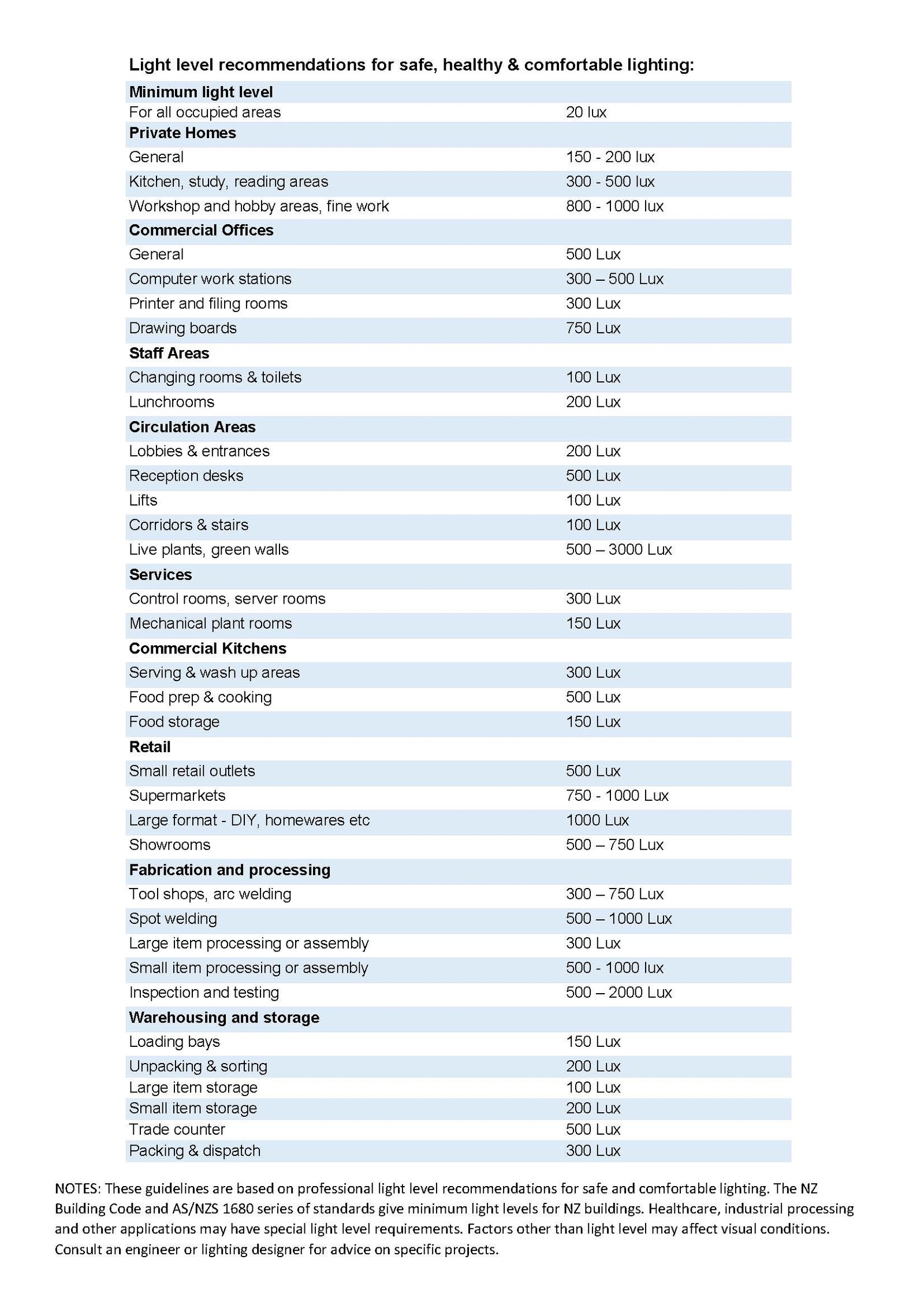

• Illuminance Levels (Lux Requirements):
  • Definition: Illuminance is a measure of the density of luminous flux (total light) incident on a specific surface area. In simpler terms, it quantifies how much light actually falls upon a given surface. It is commonly measured in lux (lx) in most parts of the world, including New Zealand, or foot-candles (fc) in some other regions (where 1 foot-candle ≈ 10.76 lux).
  • Recommended Lux Levels: Reputable industry organisations, such as the Illuminating Engineering Society (IES) in North America, the International Commission on Illumination (CIE), and various national standards bodies (like Standards New Zealand), publish comprehensive recommendations for appropriate illuminance levels for a vast array of tasks and spaces. These recommendations are based on research into visual comfort, task performance, and safety. For example:
    • General circulation areas (hallways, lobbies): Typically 50-100 lux
    • General office work (computer use, reading): 300-500 lux
    • Detailed drafting or precision assembly work: 750-1000+ lux
    • Kitchen countertops for food prep: Often 500 lux
    • Casual reading in a living room: 300-500 lux
    •




  • Measurement: Illuminance is typically measured using a specialised device called a lux meter (or light meter). The meter is held at the height of the “workplane” (e.g., desk height, floor height, or countertop height) to accurately capture the light falling on that specific surface.
• Light Loss Factors (LLF):
  • Definition: Light Loss Factors are a set of multiplicative factors applied in lighting calculations to account for various real-world conditions that cause a predictable reduction in the illuminance level of a lighting system over its operational lifetime. Luminaire components (like lamps, drivers, and reflectors) naturally depreciate in light output over time, and fixtures invariably collect dirt and dust. Without accounting for these factors, a system initially designed for maximum light levels would quickly become underlit and fall below desired standards.
  • Key Factors and Their Impact:
    • Lamp Lumen Depreciation (LLD): This factor accounts for the gradual reduction in lumen output of a light source as it operates over its expected lifespan. Modern LEDs boast excellent LLD, often maintaining 90% (L90) or 70% (L70) of their initial light output for a significant portion of their rated life.
    • Luminaire Dirt Depreciation (LDD): This factor accounts for the reduction in light output due to the accumulation of dirt, dust, and grime on the surfaces of the luminaires (fixtures) and the reflective surfaces of the room (walls, ceilings, floors). The value of this factor depends on the cleanliness of the environment and the frequency of maintenance.

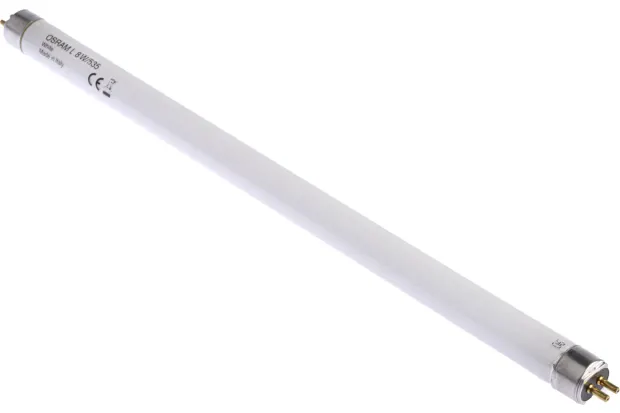

    • Ballast Factor (BF): For lighting systems that utilise ballasts (e.g., older fluorescent or HID systems), this factor accounts for the actual light output achieved when a specific lamp is operated on a specific ballast, relative to its theoretical rated lumen output.
  • Application in Calculations: Lighting designers apply these and other minor light loss factors to ensure that the “minimum maintained illuminance” (the lowest light level expected over the system’s life before scheduled maintenance) consistently meets or exceeds the required standards for the space.
• Uniformity Ratio:
  • Definition: The uniformity ratio is a critical metric that quantifies how evenly light is distributed across a target surface or within an entire space. It is typically expressed as a ratio of the minimum illuminance to the average illuminance (Emin/Eavg) or sometimes minimum to maximum illuminance (Emin/Emax) across the area.
  • Importance: A high uniformity ratio (a value closer to 1.0) signifies consistent and even light levels, which is paramount for visual comfort, minimising eye strain, enhancing safety, and ensuring optimal task performance in environments such as classrooms, offices, sports facilities, or large open-plan areas. Poor uniformity, conversely, can lead to uncomfortable bright spots, dark shadows, and visual fatigue.
• Unified Glare Rating (UGR):
  • Definition: UGR is a quantitative, standardised measure of the discomfort glare experienced by observers from a lighting installation within a specific interior environment. It is calculated based on a formula that takes into account factors like the luminance of the light sources, their size, position, the background luminance, and the observer’s viewing angle. UGR values typically range from approximately 10 (indicating virtually no discomfort glare) to 30 (indicating very high, often unacceptable, glare). Lower UGR values signify less discomfort glare.
  • Interpretation and Design Considerations:
    • UGR < 16: Generally considered imperceptible glare, ideal for very detailed or sensitive visual tasks.
    • UGR < 19: Acceptable for most general office tasks and visually demanding environments.
    • UGR < 22: Acceptable for general tasks in areas like retail spaces or reception areas.
    • UGR > 28: Indicates strong, unacceptable glare that can cause significant discomfort and hinder visual performance.
  • To achieve lower UGR values, lighting designers employ strategies such as using luminaires with effective shielding (e.g., deep-set recessed lights, fixtures with integrated louvres or diffusers), specifying light sources with lower individual luminance, or implementing indirect lighting strategies where the light source itself is not directly visible.
• Flicker Index and Percent Flicker:
  • Definition: Light flicker refers to the rapid, repeated fluctuations or variations in the light output from a light source over time. While often imperceptible to the naked human eye (especially at higher frequencies), flicker can still have adverse biological and visual effects.
    • Percent Flicker: This metric quantifies the relative difference between the maximum and minimum light output during a flicker cycle, expressed as a percentage.
    • Flicker Index: A more comprehensive metric than percent flicker. It considers the waveform of the light output, the duty cycle (the percentage of time the light is “on” during a cycle), and the shape of the flicker waveform, providing a better and more accurate indication of the potential visual and non-visual effects of flicker.
  • Impact: Even imperceptible flicker (often occurring at frequencies below 70-80 Hz, which the human eye cannot consciously detect) can contribute to:
    • Eye strain, visual fatigue, and headaches or migraines.
    • Reduced concentration and overall productivity.
    • Disruption and discomfort for individuals with light-sensitive conditions (e.g., epilepsy).
    • Stroboscopic effects, where moving machinery or rotating parts appear to slow down, stop, or move in unnatural ways, posing a significant safety hazard in industrial environments.
    • Problems with video recording and photography, creating banding or rolling effects in footage.
  • Mitigation: High-quality LED drivers (the electronic components that power LEDs) are specifically designed to minimise or eliminate flicker, providing smooth, stable, and visually comfortable light output.

3. Lighting Design Process and Professional Tools

Creating exceptional lighting environments involves a systematic approach, from initial concept to final implementation. This guide outlines the typical stages of a professional lighting design project, introduces the specialised software used by experts, and advises on when to engage with a professional lighting designer to achieve your vision.

Explanation:

Professional lighting design is a highly specialised and multi-faceted discipline that extends far beyond merely selecting and placing light fixtures. It involves a structured, systematic approach that meticulously ensures a project’s lighting goals—whether they are aesthetic, functional, energy-efficient, or human-centric—are met with precision, expertise, and adherence to relevant standards.

• The Phases of a Lighting Design Project: A typical professional lighting design project follows a clearly defined, iterative progression through several key phases, ensuring thorough planning, collaborative refinement, and accurate execution:
  1. Conceptual Design: This is the initial and often most creative phase. The lighting designer collaborates closely with the client, architect, and interior designer to thoroughly understand the project’s vision, functional requirements, and overall desired mood or aesthetic. This involves reviewing architectural plans, potentially conducting site visits, and engaging in deep discussions about user needs, activities, and the emotional impact of light. Deliverables in this phase might include inspiration boards, preliminary sketches, precedent images, and written narratives that articulate the overarching lighting intent and philosophy for the space.
  2. Schematic Design (SD): Once the core conceptual approach is approved, the designer develops preliminary lighting layouts. This involves selecting general categories of fixture types (e.g., recessed downlights, linear pendants, wall sconces), establishing initial control strategies (e.g., basic dimming zones), and performing preliminary calculations for light levels and estimated energy consumption. The goal is to confirm the feasibility of the concept and ensure it aligns with initial budgetary and energy targets. Deliverables typically include preliminary lighting plans (showing fixture locations) and an initial fixture schedule.
  3. Design Development (DD): This is the phase where the design truly comes to life with increasing detail and precision. The lighting designer meticulously specifies exact fixture models (including manufacturer, specific product codes, lamp types, finishes, and accessories), refines precise mounting locations and aiming angles for directional fixtures, and develops comprehensive control schemes (e.g., specific dimmer types, DALI addressing, scene programming). Crucial coordination occurs with other building disciplines (architects, electrical engineers, structural engineers, interior designers) to ensure seamless integration and avoid conflicts. Detailed photometric calculations for illuminance, uniformity, glare (UGR), and energy performance are extensively performed using specialised software.
  4. Construction Documentation (CD): The culmination of the detailed design phases, this involves producing a complete, comprehensive set of drawings, specifications, and schedules that electrical contractors can use for accurate and compliant installation. This package typically includes detailed lighting plans with fixture callouts, mounting details, wiring diagrams, luminaire schedules (a detailed list of every fixture with its specifications, lamp type, control information, etc.), and sophisticated lighting control diagrams. These documents form part of the overall construction documents for the project.
  5. Commissioning and Aiming: This is the final and often overlooked stage after all fixtures have been physically installed. The lighting designer works closely with the electrician, building owner, and facilities management to ensure that the installed system operates exactly as designed. This involves fine-tuning dimmer levels, calibrating sensors, programming lighting scenes, adjusting the aiming angles of spotlights, and verifying that light levels and quality meet the design intent and any specified standards. This phase is critical for realising the full potential of the lighting design.
• Using Lighting Design Software: Lighting designers extensively utilise sophisticated software tools not only to perform complex calculations and ensure technical accuracy but also to create realistic visualisations and generate comprehensive documentation. These tools go far beyond basic computer-aided design (CAD) programs.

• • Introduction to Key Tools:
    • DIALux evo: A powerful and widely used, free professional lighting design software that is popular globally for both interior and exterior lighting projects. DIALux evo allows designers to conduct detailed photometric calculations (lux levels, uniformity, UGR), create realistic 3D visualisations, perform energy consumption analyses, and check for collision detection with other building elements. It supports the import of various architectural files (like DWG, DXF, IFC) and allows users to work directly with real photometric data (IES/LDT files) provided by luminaire manufacturers.
    • AGI32: A highly respected and comprehensive professional lighting design software, particularly renowned for its advanced rendering capabilities and extremely precise photometric calculations for virtually any lighting application, including complex interior and exterior environments. AGi32 excels in modelling complex architectural geometries and performing both direct and full radiosity calculations (which accurately account for inter-reflected light, leading to highly realistic luminance renderings). It also offers strong daylight analysis functionalities.
    • ReluxDesktop: Another comprehensive and free software similar to DIALux, offering advanced tools for the simulation and visualisation of both artificial light and daylight. Relux allows for detailed planning of individual rooms, entire floors, industrial halls, or large outdoor areas. It also features robust integration capabilities with Building Information Modeling (BIM) software like Revit through dedicated add-ons.
    • Revit (Autodesk Revit): While primarily an architectural BIM (Building Information Modeling) software, Revit includes robust built-in lighting features. Designers can place intelligent lighting fixture “families” (which contain photometric data, electrical connections, and visual representations) directly within the architectural model. Users can adjust properties like initial luminous flux, light distribution (spherical, hemispherical, spot, or by importing IES photometric webs), and run basic lighting analyses directly within the model. Revit’s strength lies in its ability to integrate lighting design seamlessly into the overall building information model, facilitating coordination, clash detection with other building systems, and comprehensive documentation. For more advanced and photorealistic calculations, Revit models are often exported to specialised lighting design software.
    • Other Specialised Tools: Depending on the project’s complexity, designers might also use other specialised software such as Radiance (known for its highly accurate daylighting simulations and complex renderings), LightCalc (for quick, simpler, specific calculations), and advanced 3D modelling and rendering software like 3ds Max or Maya for producing exceptionally photorealistic visualisations.
  • Overarching Benefits of Using Professional Software: These powerful tools enable lighting designers to:
    • Accurately predict and verify light levels, uniformity, and glare before any physical installation begins.
    • Create compelling and realistic 3D renderings and walkthroughs to help clients visualise the final illuminated environment.
    • Ensure rigorous compliance with international and national lighting standards and local energy codes.
    • Optimise fixture placement, types, and quantities, which significantly reduces over-specification, minimises waste, and maximises energy efficiency.
    • Generate comprehensive and precise technical documentation for all project stakeholders, particularly contractors and electricians.

• When to Engage a Professional Lighting Designer: While a confident DIY approach can be effective for simpler residential lighting projects, engaging a professional lighting designer brings invaluable expertise and significantly elevates the outcome for more complex, critical, or high-value scenarios. Consider hiring a lighting designer when:

• • New Builds or Major Renovations: When starting from scratch or undertaking significant structural changes, a designer can integrate lighting seamlessly into the architectural design from the earliest conceptual stages, preventing costly oversights or retrofits later in the construction process.
  • Complex or Challenging Spaces: This includes large, open-plan homes, rooms with unusual or extremely high/low ceiling heights, spaces with complex architectural features, or areas with highly specific functional requirements (e.g., a home theatre, a professional art gallery, a commercial kitchen, a high-performance office, or a retail store).
  • Specialised Lighting Needs: For projects requiring advanced lighting concepts such as sophisticated human-centric lighting (circadian lighting), intricate and integrated control systems, or strict adherence to specific industry standards (e.g., healthcare facilities, museum lighting, educational environments).
  • High-End or Architectural Projects: When lighting is intended to be a significant, integral, and transformative design element that enhances aesthetics, highlights architectural features, and defines the character of the space.
  • Achieving Specific Energy Efficiency or Sustainability Goals: For maximising energy savings, pursuing green building certifications (like Green Star or Living Building Challenge), or minimising the environmental footprint of the lighting system.
  • Troubleshooting Persistent Issues: If you’re struggling with ongoing lighting problems like pervasive glare, insufficient light for critical tasks, uneven illumination, or a general lack of ambience in an existing space.
  • Seamless Coordination: Professional lighting designers play a critical role in effectively coordinating the lighting design with architects, interior designers, electrical engineers, and contractors, ensuring that the lighting vision is fully integrated, technically sound, and executable within the project’s constraints. They act as a vital bridge between the aesthetic vision and the technical reality.

4. Materiality and Light Interaction

The interplay between light and the materials it strikes is fundamental to how we perceive a space. This guide explores the intricate relationship between light and various surfaces, explaining how different finishes, textures, and colours reflect, absorb, or transmit light. Understanding these interactions allows for more sophisticated lighting design that enhances the inherent beauty and character of an interior.

Explanation:

The magic of lighting design often lies not just in the light fixture itself, but in how that light interacts with the surfaces and materials within a space. Every material possesses unique properties that dictate how it responds to incident light – whether it absorbs it, reflects it, or allows it to pass through. Understanding this intricate interplay is fundamental for creating sophisticated, visually rich, and comfortable environments that truly enhance the inherent beauty and character of an interior.

• Reflectance, Transmittance, and Absorption: When light strikes a surface, three fundamental interactions can occur:
  • Reflectance: This is the proportion of incident light that bounces off a surface. Surfaces with high reflectance (e.g., white walls, mirrors, polished chrome) appear brighter and make rooms feel more expansive and illuminated, as they return a large percentage of the light.
  • Transmittance: This is the proportion of incident light that passes through a material. Transparent materials (e.g., clear glass) allow most light to pass through unchanged, while translucent materials (e.g., frosted glass, thin fabric shades) scatter and diffuse the light as it passes through, softening its effect.
  • Absorption: This is the proportion of incident light that is taken in and converted into heat by a material. Surfaces with high absorption (e.g., dark, matte finishes like black velvet) absorb most of the light, making them appear darker and making rooms feel more enclosed or intimate, as they return very little light.
  • Impact on Perceived Brightness and Colour: These properties profoundly influence the perceived brightness of a space, the vividness of colours, and the overall visual comfort. For example, a room with dark, absorbent walls will require significantly more light to achieve the same perceived brightness as a room with light, reflective walls.

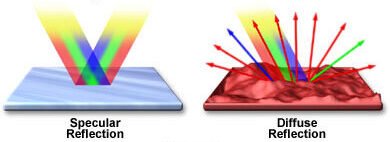

• Specular vs. Diffuse Reflection: The way light reflects off a surface profoundly affects light quality and potential for glare.
  • Specular Reflection: Occurs when light reflects off a smooth, highly polished surface (like a mirror, polished chrome, or glossy tile) at the same angle it hit, similar to how a billiard ball bounces off a cushion.
    • Characteristics: Creates distinct images of the light source, produces strong highlights, and can often lead to uncomfortable direct or reflected glare. While it can add sparkle, it needs careful control.

• • Diffuse Reflection: Occurs when light strikes a rough or matte surface (like unpolished wood, matte paint, or textured fabric) and scatters in many different directions.
    • Characteristics: Produces a soft, even, and uniform illumination without harsh reflections or glare. It creates a comfortable, ambient glow.

  •

  • Design Implications: Designers carefully choose between specular and diffuse surfaces based on the desired effect. Specular surfaces can create drama and sparkle but require glare management. Diffuse surfaces are excellent for general illumination, reducing glare, and creating a soft, welcoming atmosphere.
• Texture and Form: Light is instrumental in revealing and enhancing the texture and three-dimensional form of surfaces and objects.
  • Enhancing Texture: When light hits a textured surface (e.g., a brick wall, wood panelling, corrugated metal, or rough fabric) at a grazing angle (coming from very close and almost parallel to the surface), it creates pronounced shadows and highlights that dramatically emphasise the material’s tactile qualities and depth.
  • Diminishing Texture: Conversely, light that hits a textured surface directly from a distance (like a broad wall wash) can flatten out the appearance of texture, making the surface seem smoother and more uniform.
  • Revealing Form: Strategic lighting can sculpt architectural forms and objects by creating controlled shadows and highlights that define their contours and dimensions. This adds depth, interest, and a sense of volume to a space.
• Colour Perception Under Different Lights: The colour temperature and Colour Rendering Index (CRI) of a light source significantly impact how we perceive the colours of objects and surfaces in a room.
  • Metamerism: This fascinating phenomenon occurs when two colours appear to be an exact match under one light source (e.g., natural daylight) but then appear different when viewed under another light source (e.g., an artificial bulb with a different SPD). This is because the two “matching” colours are reflecting different underlying spectral compositions.
  • Impact on Interior Design: For interior designers and homeowners, understanding this is critical. A paint colour, fabric sample, or piece of furniture might look perfect in the showroom (under specific lighting) but appear completely different once brought into a home with different artificial or natural light. This highlights the importance of:

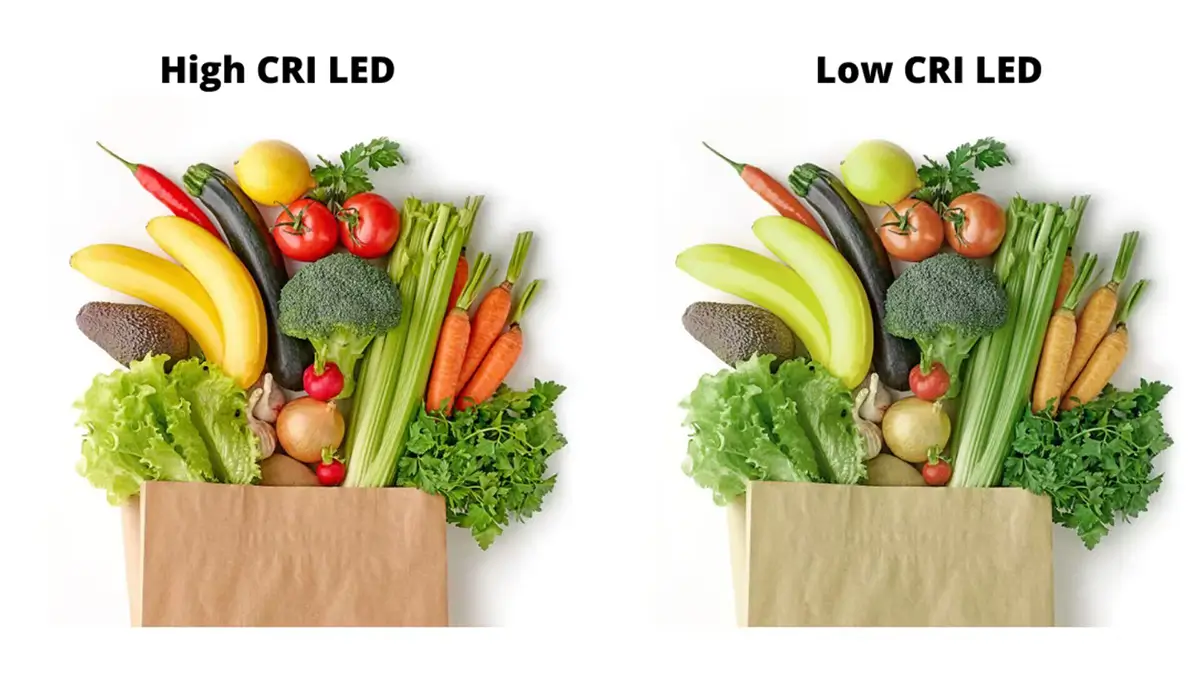

    • High CRI: Using light sources with a high CRI ensures that colours are rendered accurately and vibrantly, appearing true to their natural state. This is especially important for areas where colour judgment is critical, such as art studios, dressing rooms, or retail clothing stores.
    • Testing Colours in Context: Always test paint swatches, fabric samples, and material selections in the actual space under the intended lighting conditions (both natural and artificial) before making final decisions.
    • Warm vs. Cool Light Effects: Warm light (low Kelvin) can enhance reds, oranges, and yellows, making a room feel cosy but potentially dulling blues and greens. Cool light (high Kelvin) can make blues and greens more vibrant, but might make warm colours appear flatter or less saturated.

5. Specialised Interior Lighting Applications

Beyond general residential needs, lighting plays distinct and critical roles in various commercial and institutional settings. This guide explores the unique considerations and best practices for specialised interior lighting applications, from illuminating priceless art to creating inviting retail experiences and optimising environments for health and learning.

Explanation:

While the principles of layered lighting and good design are universal, specific interior environments demand highly specialised lighting approaches. The unique functions, user groups, and aesthetic goals of commercial, institutional, and cultural spaces necessitate tailored lighting solutions that go beyond typical residential considerations.

• Museum and Gallery Lighting:
  • Primary Goals: The lighting of museums and art galleries serves a dual critical purpose: showcasing priceless artworks and artefacts to their best visual advantage, and simultaneously ensuring their long-term preservation and conservation.
  • Conservation: This is paramount. Light (especially UV and IR radiation) can cause irreversible damage such as fading, discolouration, and material degradation. Therefore, museum lighting often involves:
    • Low UV/IR Emission: LEDs are ideal as they emit virtually no UV or IR radiation.
    • Strict Illuminance Limits: Specific lux levels are often mandated for different types of artefacts (e.g., highly sensitive textiles might be limited to 50 lux, while stone might tolerate 300 lux).
    • Controlled Exposure Times: Limiting the duration of light exposure.
  • Display and Visual Experience:
    • High CRI: Essential (90+ CRI, often 95+) to ensure true and accurate colour rendering of artworks.

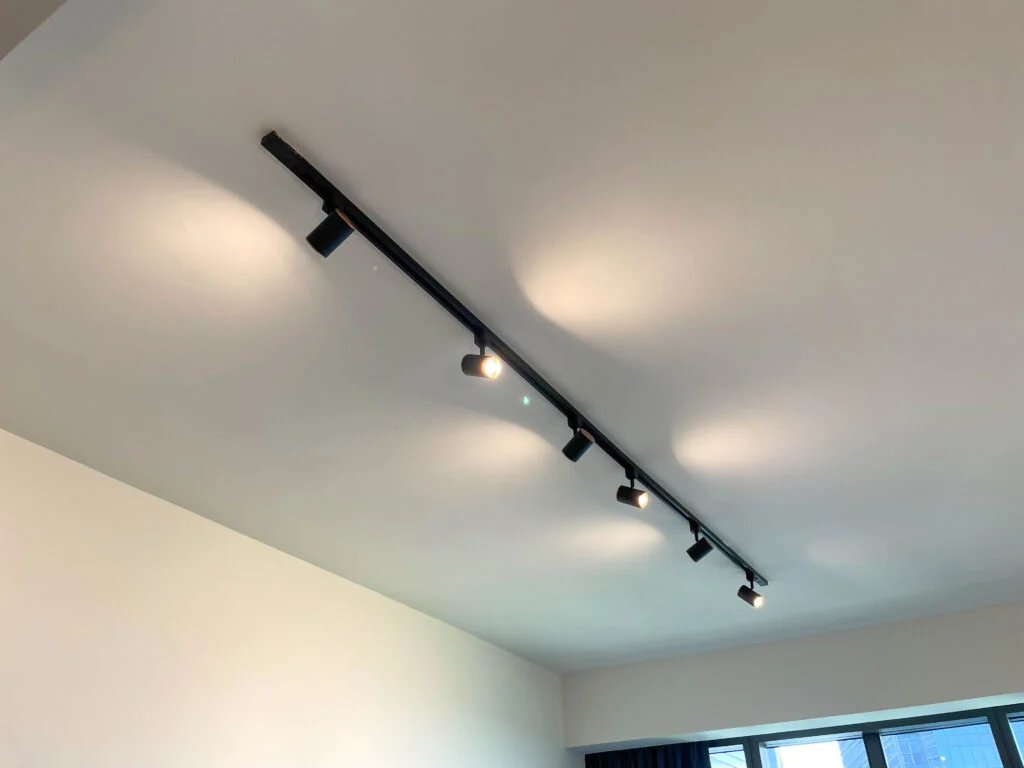

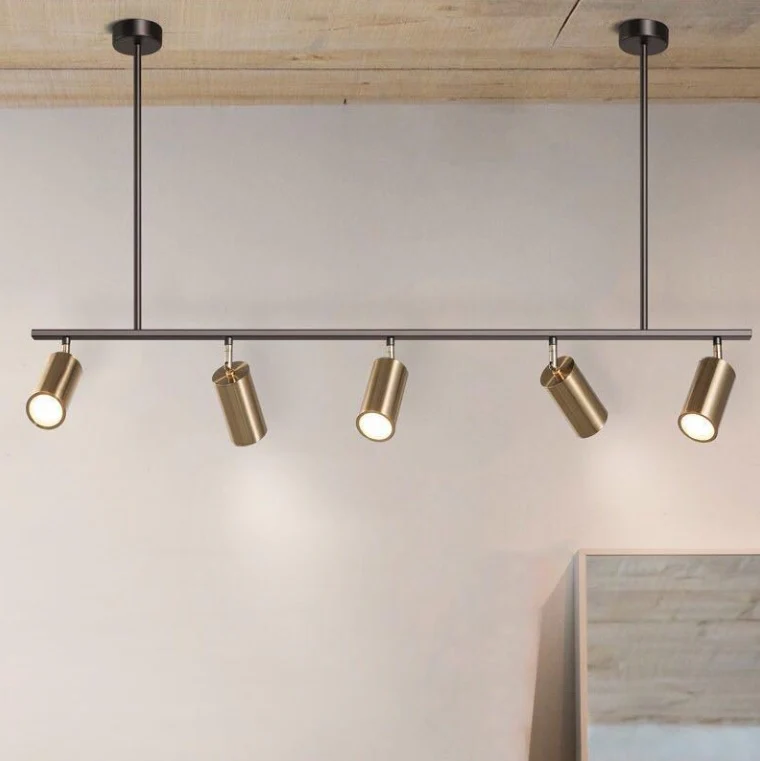

    • Precise Aiming: Using track lights with narrow beam angles and adjustable heads for precise aiming to highlight specific areas of an artwork.
    • Glare Mitigation: Minimising reflections on glazed art or display cases, often through careful fixture placement and use of anti-reflective glass.
    • Flexible Systems: Track lighting or highly adaptable systems allow for easy reconfiguring as exhibits change.
• Retail Lighting:
  • Primary Goals: Retail lighting is fundamentally about enhancing the customer experience, drawing attention to merchandise, encouraging purchases, and reinforcing brand identity.
  • Highlighting Merchandise:

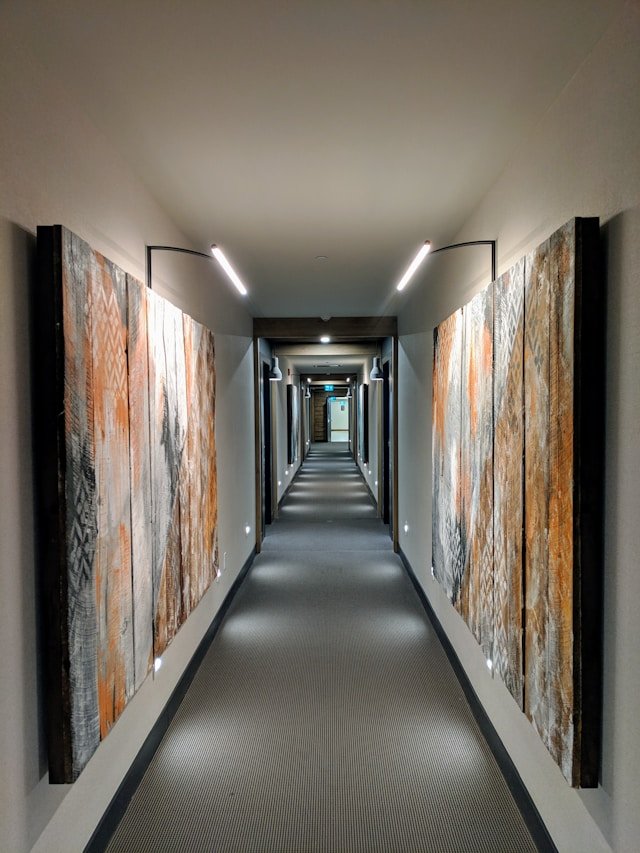

    • Accent Lighting: Crucial for making products pop. Spotlights on track or recessed fixtures are aimed directly at displays, mannequins, or key products to make them stand out.
    • Vertical Illumination: Ensuring walls and vertical displays are well-lit to showcase products effectively.
  • Guiding Customers (Wayfinding): Lighting can subtly direct customer flow through a store, drawing them towards key departments or promotions.
  • Brand Experience and Ambience: Lighting plays a significant role in creating the desired atmosphere that aligns with the brand’s image (e.g., bright and energetic for a discount store, warm and luxurious for a high-end boutique). Different departments might have different lighting schemes.
  • Window Displays: Often utilise dramatic, high-contrast lighting to capture attention from outside.
• Hospitality Lighting (Hotels, Restaurants, Bars):
  • Primary Goals: To create an inviting, comfortable, and memorable atmosphere, enhance the interior design, and support efficient operation. Flexibility and ambience are key.
  • Creating Ambience: Lighting is paramount for setting the mood – soft and intimate for fine dining, vibrant and energetic for a bar, and welcoming and luxurious for a hotel lobby. Dimmability and scene setting are critical.
  • Functionality: Ensuring staff can perform tasks efficiently and safely (e.g., adequate task lighting in kitchens, discreet lighting at reception desks).
  • Brand Identity and Aesthetics: Lighting fixtures themselves, along with the quality and quantity of light, reinforce the establishment’s unique style and brand. Architectural details, materials, and artwork are often strategically highlighted.
  • Layering: Extensive use of layered lighting (ambient, task, accent, decorative) to create depth and visual interest in various zones (e.g., dining tables, bar tops, seating areas).
• Healthcare Lighting:
  • Primary Goals: To support patient recovery and well-being, optimise working conditions for medical staff, and ensure safety and infection control.
  • Patient Comfort and Healing:
    • Circadian Support: Implementing human-centric lighting (tunable white) to support patients’ natural sleep-wake cycles, which can aid recovery and reduce delirium.
    • Reduced Glare and Harshness: Creating a calming environment with soft, diffused light, avoiding direct glare from fixtures or windows.
    • Personal Control: Allowing patients to control light levels in their immediate environment.
  • Staff Performance: Providing excellent task lighting for examinations, procedures, and administrative work, ensuring high visual acuity and minimal eye strain.
  • Infection Control: Specifying fixtures that are easy to clean, durable, and resistant to hospital-grade disinfectants. Certain UV-C lighting technologies are also used for disinfection.
  • Wayfinding: Clear, intuitive lighting for navigation within large medical facilities.
• Educational Lighting (Schools, Universities):
  • Primary Goals: To optimise learning environments, support student concentration, reduce visual fatigue, and provide adaptable lighting for various activities.
  • Optimising for Learning:
    • Even Illumination and Glare Reduction: Classrooms require uniform, shadow-free lighting with low UGR to minimise eye strain and ensure all students can see whiteboards, projectors, and their materials.
    • Colour Temperature: Dynamic or tunable white lighting can be highly beneficial, providing cooler, brighter light for focused learning and warmer light for group activities or relaxation.
    • Acoustic Integration: Considering light fixtures that also incorporate acoustic properties to manage noise levels.
  • Flexibility: Lighting systems should be flexible enough to adapt to different teaching methods (e.g., lecture mode, group work, projector viewing) and to specific areas (libraries, labs, hallways).
  • Energy Efficiency: Often a significant concern in large educational facilities, leading to widespread adoption of LEDs and smart controls.
• Residential Aged Care Lighting:
  • Primary Goals: To support the visual needs and well-being of older adults, who often experience age-related vision changes, and to assist with maintaining healthy circadian rhythms.
  • Addressing Visual Impairments:
    • Higher Light Levels: Older eyes generally require more light to see clearly due to factors like pupil constriction and lens yellowing.
    • Reduced Glare: Minimising glare is crucial as older eyes are more sensitive to it. Indirect lighting, shielded fixtures, and matte surfaces are preferred.
    • Improved Contrast: Lighting should enhance contrast between surfaces and objects to aid perception and reduce falls.
  • Circadian Support: Implementing dynamic or tunable white lighting that follows natural daylight cycles helps to regulate sleep patterns, reduce agitation, and improve mood among residents.
  • Safety and Wayfinding: Clear, consistent lighting in hallways, bathrooms, and common areas is essential for preventing falls and aiding navigation, especially at night (e.g., low-level night lights).
• Outdoor Lighting for Interiors (Transitional Spaces):
  • Concept: This refers to the thoughtful lighting of exterior spaces that are directly visible from or seamlessly connected to interior living areas, such as covered patios, conservatories, pergolas, or courtyards viewed through large windows.
  • Connecting Indoor and Outdoor: The goal is to create a harmonious visual connection between the interior and exterior, extending the perceived living space. Lighting outdoor features can make the view at night as appealing as during the day.
  • Creating Depth and View: Strategically lighting landscaping elements, trees, sculptures, or architectural details in the garden creates depth and visual interest beyond the interior walls, making the indoor space feel larger and more connected to its surroundings.
  • Considerations: All outdoor fixtures must meet appropriate IP (Ingress Protection) ratings for water and dust resistance, be durable for outdoor conditions, and be designed to minimise light pollution and glare for neighbours.

6. Advanced Control Strategies

Beyond simple dimmers, modern lighting systems offer sophisticated control strategies that enhance comfort, energy efficiency, and customisation. This guide explores cutting-edge control technologies, from daylight harvesting to dynamic lighting, empowering you to create highly responsive and intelligent lighting environments.

Explanation:

Modern lighting has evolved far beyond basic on/off switches and simple dimmers. Advanced control strategies unlock unprecedented levels of comfort, energy efficiency, and customisation, enabling the creation of highly responsive and intelligent lighting environments that adapt to human needs, energy availability, and specific tasks. These systems are key to maximising the benefits of LED technology.

• Daylight Harvesting Systems:
  • Functionality: These sophisticated systems utilise photosensors (also known as daylight sensors or photocells) that continuously measure the amount of natural daylight entering a space. When sufficient natural light is present, the system automatically dims or turns off artificial lights in that area. As natural light levels decrease (e.g., on a cloudy day or towards evening), the artificial lights gradually brighten to maintain a consistent overall light level.
  • Benefits:
    • Significant Energy Savings: By reducing reliance on artificial lighting during daylight hours, these systems can lead to substantial reductions in electricity consumption and operational costs.
    • Improved Occupant Well-being: Maintaining a consistent visual environment and integrating natural light has been shown to enhance comfort, productivity, and connection to the outdoors, aligning with human-centric lighting principles.
  • Applications: Widely used in offices, schools, retail spaces, and homes with abundant natural light from large windows or skylights.
• Occupancy-Based Control (Beyond Simple On/Off):
  • Functionality: While basic occupancy/vacancy sensors simply turn lights on/off, advanced occupancy-based control systems go further. They can adjust light levels based on real-time occupancy and even the activity being performed in a space. For example, lights might dim to a lower level if someone is just passing through a hallway, but brighten to a full task level if they sit down at a desk.
  • Types of Sensors:
    • Passive Infrared (PIR): Detects changes in infrared radiation caused by moving heat (people).
    • Ultrasonic: Emits high-frequency sound waves and detects changes in the reflected waves caused by motion.
    • Dual-Technology: Combines PIR and ultrasonic sensing for enhanced accuracy and to minimise false triggers.
    • Microwave: Detects motion through walls and non-metallic objects, useful in certain hidden applications.
  • Benefits: Optimised energy savings, hands-free convenience, and tailored lighting levels for specific activities.
• Scene-Setting Controls:
  • Functionality: Scene-setting controls allow users to recall pre-programmed lighting configurations (“scenes”) with a single button press or voice command. Each scene can involve multiple light fixtures, each set to a specific brightness, colour temperature, or even colour.
  • Examples:
    • “Movie Night” scene: Dims main lights, turns on accent lighting around a TV, sets a warm ambience.
    • “Dinner Party” scene: Brightens the dining table pendant, adds soft wall wash, sets a general inviting glow.
    • “Wake-up” scene: Gradually brightens bedroom lights and shifts to a cooler temperature over a set period.
  • User Interface: Scenes can be activated via wall-mounted keypads (with custom engraved buttons), smartphone apps, or voice commands through smart home assistants.
  • Benefits: Unparalleled convenience, instant transformation of a space’s mood and function, and consistent achievement of desired lighting effects.
• Dynamic Lighting (Tunable White and Colour-Changing):
  • Definition: Dynamic lighting systems can automatically or manually change both the intensity (brightness) and the colour temperature of white light throughout the day. In some advanced systems, they can also change to a full spectrum of colours (RGB/RGBW).
  • Key Applications:
    • Circadian Lighting: Mimicking the natural daylight cycle (cooler and brighter in the morning/mid-day, warmer and dimmer in the evening) to support human circadian rhythms, improve sleep, and enhance alertness and mood.
    • Mood Creation: Instantly transforming the ambience of a room for different activities or events (e.g., a vibrant blue for a party, a calming green for meditation).
    • Retail and Hospitality: Adapting the lighting to highlight products or create specific atmospheres for different times of day or promotions.
  • Benefits: Promotes human well-being, offers extreme flexibility in design, and creates engaging, responsive environments.
• Networked Lighting Controls (NLC):
  • Functionality: NLC systems involve a network of interconnected lighting fixtures, sensors, and control devices that communicate with each other. This allows for centralised management and granular control over large lighting installations (e.g., entire buildings or multiple rooms). Systems can be wired (e.g., DALI) or wireless (e.g., Zigbee, Bluetooth Mesh).
  • Centralised Management: Control all lights from a central dashboard or software interface.
  • Data Collection and Analytics: NLC systems can collect valuable data on energy usage, occupancy patterns, system performance, and even ambient light levels. This data can be used for energy optimisation, space utilisation analysis, and predictive maintenance.
  • Benefits: Highly scalable, significant energy savings through intelligent automation, reduced operational costs, advanced diagnostics, and potential integration with other building management systems.
• Power over Ethernet (PoE) Lighting:
  • Emerging Technology: PoE lighting is an innovative and rapidly emerging technology where LED lighting fixtures are powered and controlled directly via standard Ethernet (CAT5e/6) network cables. These are the same cables used for internet connectivity.
  • How it Works: A PoE switch provides both low-voltage DC power and data communication over a single Ethernet cable to each light fixture.
  • Benefits:
    • Simplified Wiring: Eliminates the need for separate high-voltage electrical wiring, reducing installation complexity and cost.
    • Lower Installation Costs: Fewer materials and less labour for wiring.
    • Enhanced Data Capabilities: Because the lights are part of the IT network, they can become “smart devices” themselves, enabling precise control, real-time energy monitoring, data collection (e.g., occupancy, temperature from integrated sensors), and seamless integration with other IT systems (e.g., building management systems, HVAC).
    • Greater Flexibility and Scalability: Easier to reconfigure and expand the lighting system.
    • Improved Safety: Operates on low-voltage DC power.
  • Applications: Increasingly adopted in commercial offices, educational institutions, and smart buildings, looking for highly integrated and data-driven solutions.

7. Troubleshooting and Maintenance

Even the best lighting systems require attention to maintain optimal performance. This guide provides essential advice on routine maintenance, troubleshooting common issues, and identifying when it’s time for an upgrade. Learn how to extend the life of your lighting, ensure consistent quality, and keep your illuminated spaces shining brightly.

Explanation:

Proper maintenance is not merely about fixing things when they break; it’s a proactive strategy to ensure that a lighting system consistently performs to its optimal design intent, maintains excellent light quality, operates efficiently, and reaches its expected lifespan. Understanding common troubleshooting steps can prevent unnecessary service calls and save money, while knowing when to upgrade can unlock significant long-term benefits in terms of energy savings, improved aesthetics, and enhanced functionality.

• Routine Maintenance for Lighting Systems: Regular, scheduled maintenance plays a crucial role in preserving light levels, maintaining the aesthetic appeal of a space, and preventing premature failures of lighting components.
  • Cleaning Fixtures and Lamps: Dust, dirt, grease, and even insects can accumulate on the surfaces of light bulbs (lamps), reflectors, lenses, and diffusers. This accumulation can significantly reduce the actual light output, making a room appear dimmer than intended. Regular, gentle cleaning (always ensure lights are turned OFF and cool before cleaning) using appropriate, non-abrasive cleaning agents can restore light levels and maintain optical efficiency.
  • Checking Connections and Wiring: Periodically inspect any visible wiring, electrical connections, and junction boxes for signs of wear, fraying, discolouration, or loose contacts. This is particularly important for outdoor light fixtures exposed to the elements or in environments with high vibration. Crucially, always ensure the power supply to the fixture or circuit is completely OFF at the breaker before attempting any inspection or handling of wiring.
  • Replacing Expired or Diminished Lamps: While modern LEDs boast exceptionally long lifespans, individual bulbs can still eventually fail or degrade below acceptable light levels (lumen depreciation). Replacing them promptly maintains uniform light levels across a space. For older technologies (e.g., fluorescent tubes, halogen bulbs, incandescent bulbs), a strategy called “group relamping” (changing all bulbs in a system at once, even if some are still working) can be more cost-effective than “spot replacement” (changing individual failed bulbs), especially in large commercial or institutional settings, as it reduces labour costs over time.
  • Maintaining Control Systems: Ensure that dimmer switches operate smoothly and quietly, that occupancy or daylight sensors are clean and free from obstructions (like dust buildup or furniture blocking their view), and that any smart lighting hubs or network devices are securely connected and running the latest firmware updates. Regularly check associated smart home apps for any system error messages or performance warnings.
  • Cleaning Sensors: A thin layer of dust or any physical obstruction on daylight harvesting photosensors, occupancy sensors, or smart dimmer light sensors can impair their ability to accurately detect light levels or motion. This can lead to lights not turning on/off correctly, dimming at inappropriate times, or reduced energy savings.
• Common Lighting Problems and Solutions: Knowing how to identify and address common lighting issues can save you time, frustration, and often the cost of a service call.
  • Flickering Lights:
    • LEDs: This is a very common issue. Often caused by incompatibility between the LED bulb/fixture and the dimmer switch (LEDs require specific “LED-compatible” dimmers). Other causes include loose wiring connections, a faulty LED driver (the electronic component that regulates power to the LEDs), or voltage fluctuations. Solution: Verify dimmer compatibility; ensure all connections are secure; replace the bulb or, if applicable, the integrated driver.
    • Fluorescent Lights: Can be caused by an ageing fluorescent tube, a failing ballast (the component that regulates current), or operating in excessively cold temperatures. Solution: Replace the fluorescent tube; ifthe  issue persists, replace the ballast; ensure the room temperature is within the bulb’s operating range.
  • Buzzing or Humming Noise:
    • LEDs: Most commonly stems from an incompatible dimmer switch or a low-quality LED driver that isn’t managing the electrical current smoothly. Solution: Upgrade to an LED-compatible, high-quality dimmer; consider replacing the bulb with a higher-quality one that incorporates a better driver.
    • Fluorescent Lights: Often indicates an old or failing magnetic ballast. Electronic ballasts are typically much quieter. Solution: Replace the old magnetic ballast with a modern electronic ballast, or consider upgrading to LED tube replacements that bypass the ballast entirely.
  • Inconsistent Brightness or Colour (among multiple fixtures):
    • LEDs: Can sometimes be a sign of poor manufacturing quality control across a batch of bulbs, using bulbs from different manufacturers or production batches (leading to slight colour variations), or issues with inconsistent electrical voltage supply to different fixtures. Solution: Ensure all bulbs in a multi-fixture setup are from the same manufacturer and batch; consult a qualified electrician to check for consistent voltage supply across the circuit.
    • Fluorescent/Halogen: Often an indicator of an ageing lamp nearing the end of its life, or a failing ballast that isn’t providing consistent power.
  • Lights Not Turning On (no power):
    • Simple Checks: First, ensure the bulb is securely screwed into the socket. If it’s an older technology bulb, check if the filament is visibly broken (indicating it’s “blown”). Verify that the circuit breaker for that room or circuit has not tripped in your electrical panel. For dimmable lights, ensure the dimmer switch is not set to its absolute lowest (off) setting.
    • Faulty Switch/Wiring: If all simple checks pass, the issue could be a faulty light switch itself, a loose connection within the switch, or a more serious issue with the electrical wiring. This requires investigation by a qualified electrician for safety.
  • Short Bulb Lifespan (bulbs failing prematurely):
    • Over-voltage: If the voltage supplied to the fixture is consistently too high, it can prematurely “burn out” bulbs.
    • Excessive Heat: Poor ventilation within the light fixture or an enclosed housing that traps heat can significantly shorten the lifespan of any bulb, particularly LEDs, which are sensitive to high temperatures.
    • Incompatible Dimmers: Incorrect dimmers can stress the electronic drivers in LED bulbs, leading to early failure.
    • Frequent Cycling: While less impactful on LEDs than older technologies, turning lights on and off extremely frequently can still slightly reduce the lifespan of some bulb types.
    • Vibration: In environments with high vibration, standard bulbs may fail quickly. Specialised, durable or rough-service bulbs might be needed.
• When to Upgrade Your Lighting System: Deciding when to upgrade your lighting system can bring significant benefits beyond just fixing problems. Consider an upgrade when:
  • High Energy Bills: If a significant portion of your electricity bill is attributable to lighting, upgrading to high-efficiency LED technology is the single most impactful change you can make to reduce energy consumption and save money.
  • Frequent Bulb Replacement and Maintenance: If you find yourself constantly changing bulbs or maintaining older, less reliable fixtures, the ongoing costs and labour can quickly add up. Long-life LEDs offer dramatic reductions in maintenance frequency and associated costs.
  • Poor Light Quality or Discomfort: If a room consistently feels dim, has harsh shadows, suffers from excessive glare, or if colours appear dull and inaccurate, an upgrade to better quality, higher CRI LEDs with appropriate light distribution can truly transform the space and improve visual comfort.
  • Outdated Aesthetics: Old, yellowing plastic fixtures or lighting styles that no longer align with your home’s decor can significantly detract from the overall aesthetic. Upgrading offers an opportunity for a refreshed, modern look.
  • Lack of Control or Flexibility: If you desire advanced features like seamless dimming, easy scene setting, integration with your smart home system, or dynamic lighting capabilities that your current setup doesn’t offer.
  • Safety Concerns: Any signs of overheating fixtures, frayed or exposed wiring, persistent electrical faults, or non-compliant installations should always prompt an immediate professional repair or a complete system upgrade for safety reasons.
  • During Renovation Projects: Any major home renovation or commercial fit-out is the ideal time to completely rethink and upgrade your lighting. Integrating a new lighting design seamlessly with the new architecture and interior design can achieve superior results and avoid costly post-construction retrofits.
  • Environmental Impact and Sustainability Goals: For individuals or businesses committed to reducing their carbon footprint, minimising energy consumption, and embracing sustainable practices, upgrading to modern, efficient lighting is a fundamental step.
